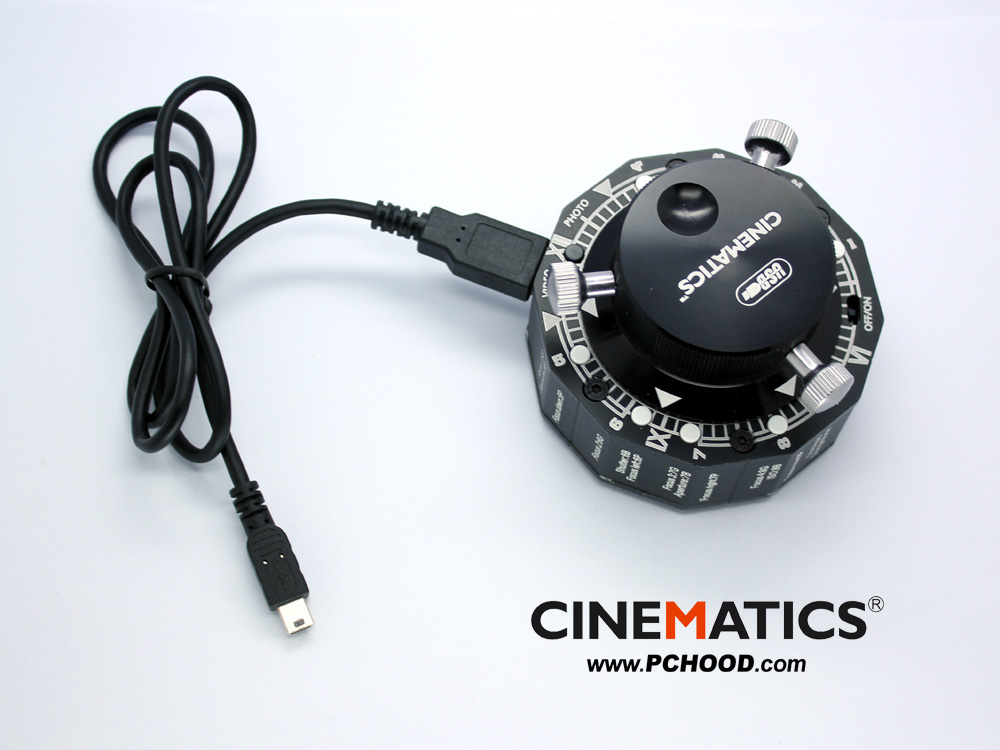

Upgraded version of USB Focus Controller

Upgraded version of USB Focus Controller
Click to enlarge
Price: $99
Availability: Pre-Order
Model: DSLR controller
Manufacturer: CINEMATICS
Average Rating: 5 out of 5 Stars!

DSLR USB CONTROLLER (a controller and a one-meter USB cable)

USB Controller:can easily remote control the camera with USB cable

Apply to the following models:

• EOS 5D Mark III
• EOS 5D Mark II
• EOS 1D Mark IV
• EOS 7D
• EOS 60D
• EOS 600D/Rebel T3i/Kiss X5
• EOS 550D/Rebel T2i/Kiss X4
• EOS 500D/Rebel T1i/Kiss X3

There are 9 buttons and 1 knob on USB focus controller.  After connecting the controller to DSLR, and get the DSLR set on real time monitoring mode, the focus can be adjusted by turning Knob. All the rest 9 buttons can be functioning by short press (hold less than 1/2 s) or long press (more than 1/2s)

Switch USB controller to different working mode:

Hold button E, and short press button H, the indicator light will be switched from Green to Blue, to purple, which also means the working mode switched from Focus mode to Set mode, to centralizing mode.

The Knob——In any modes, you can adjust the focus by turning the knob.

A——long-press it, we can switch the real-time mode to replay mode, press it again ,we can switch backward.

          Short press it, we can adjust the speed of focusing, the speed can be divided into 3, slow, medium, fast. One click is speed 1 (slow), double-clicks is speed 2 (medium), triple clicks is speed 3 (fast) ,such a cycle.

B——Constant smooth focus towards infinity

C——Constant smooth focus towards minimum focus distance

D——Cycles 1×/5×/10× zoom, amplification of local

Video control. Camera shutter——In the shooting mode, short press the key can change between video capture and photo shoot; Camera mode, press the key to take photoes.

E——Multi-funtion switch
Function 1:
Press the E key, press the H key can be changed to three different modes
Green    Focus point mode
Blue      Settings mode
Purple    Focus zone mode
Function 2: When the LED is purple, that means focus zone mode, short press the H key to move the focus down.

F——When the LED is purple, that means focus zone mode, short press the F key to move the focus left.

G——When the LED is purple, that means focus zone mode, short press the G key to move the focus right.
     When the LED is blue, that means setting mode, long press the G key, you can adjust the focus by turning the knob.

H——Multi-function switch
Function 1:
Press the E key, press the H key can be changed to three different modes
Green    Focus point mode
Blue      Settings mode
Purple    Focus zone mode
Function 2:
When the LED is purple, that means focus zone mode, short press the H key to move the focus up.
Function 3:
When the LED is blue, that means setting mode, long press the H key, you can adjust ISO by turning the knob.



With a 1/4 threaded ports on the back of Focus Controller, you can install the optional tools on the head handle.

Optional Accessories:$20 (If necessary, please e-mail informing staff to confirm)

Large-scale mold production, quantities available, price is only half of similar products abroad.

The same as Canon’s utility, USB Focus Controller achieved a variety of functions with the advantage of Canon’s protocol, the different is that through the USB Focus Controller, you can connect the computer to achieve Utility funtion constraints. The product is handheld, weighing less than 155g(with battery) and diameter less than 3 inches(100MM), USB Focus Controller and the camera via USB cable connected with A to B by Standard Interface(MINI). The USB controller on the back with a 1/4 screws can be connected with the bottom bracket fixed to the shooting support .

Even in the video recording, USB Focus Controller is also able to focus with the Canon USM AF motor inside the lens to achieve focus with the control, the function also applies to live view mode to take pictures for photography.  With the USB Focus Controller and a camera connection, HDMI output can also work, as the other nine around the central knob surrounded by nine buttons can achieve a variety of important features inluding video recording function on/off, digital zoom, adjust certain parameters, fierce autofocus, and more violent the focus of saving.
